Structural Defects in Bath Properties: A Surveyor's Guide

Bath Surveyors UK routinely identifies structural defects in Bath properties that buyers never knew existed. Structural issues are often the most frightening findings in a survey report — but they don't always mean disaster. The key is understanding what you're looking at. This guide explains the most common structural defects we find in Bath's older properties, what they mean, and what to do if you find them.

"Not every crack is a structural crisis. But every crack needs to be assessed by someone who knows what they're looking at. That's exactly what we're here for." — Daniel Price, Senior Building Surveyor

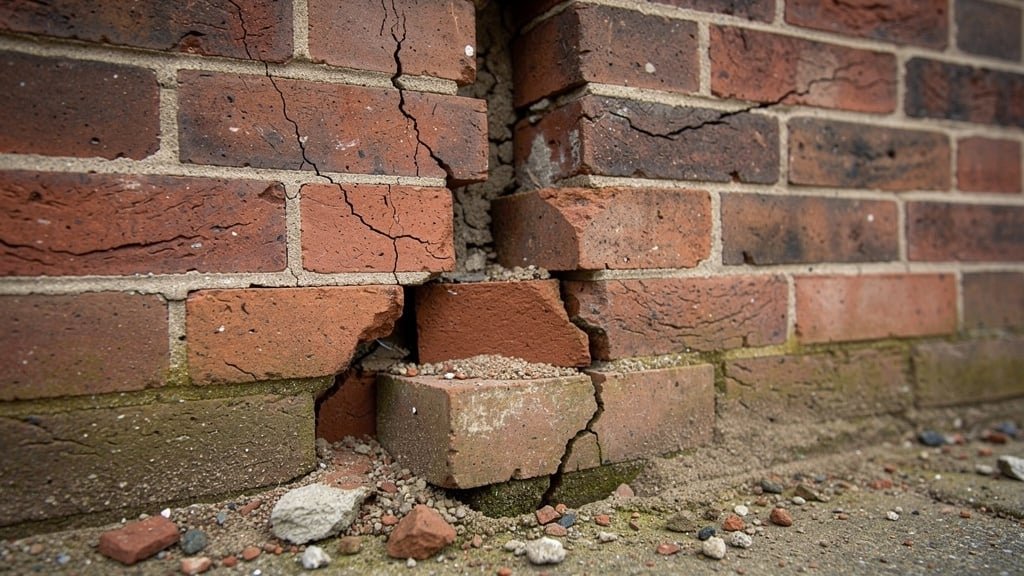

Understanding Cracks in Bath Properties

Cracks are probably the most common structural defect we're asked about. The important thing to understand is that not all cracks are equal — they can have very different causes and very different implications for the structural integrity of the building.

We broadly classify cracks into three categories:

Shrinkage Cracks

Thin, hairline cracks typically found in plaster, render, or mortar joints. These are caused by thermal movement and drying shrinkage and are almost always cosmetic — not a structural concern. They're very common in Bath's older properties and don't normally require anything more than routine redecoration.

Settlement Cracks

Slightly wider cracks (typically 1–5mm) that develop as a building settles over time. Some degree of settlement is normal in any structure, particularly in the first few decades of its life. Settlement cracks in older Bath properties have usually "stabilised" — meaning the movement has stopped. If cracks are stable and show no sign of recent movement, they're often of limited concern.

Subsidence Cracks

Wider, often diagonal cracks (typically >5mm) that suggest significant differential movement in the foundations. These are the most serious type and require careful investigation. In Bath, subsidence can be caused by: old mine workings (Bath has an extensive history of stone quarrying), clay shrinkage in dry summers, tree roots near the foundation, and leaking drains undermining the foundation soil.

Structural Movement in Bath's Terraces

Bath's famous Georgian and Victorian terraces are interconnected structures. Movement in one property can affect its neighbours. If you're buying a mid-terrace or end-of-terrace property, our surveyors will look carefully for evidence of differential movement between your property and the adjacent ones — both in the party walls and at the roofline.

We also look for evidence of lateral movement in walls (often indicated by bulging or bowing), which can be caused by loss of structural ties, removal of internal walls without proper support, or long-term moisture-related deterioration of the wall structure.

Old Mine Workings: A Specific Bath Risk

Bath has a unique geological history. The city was built on and around extensive freestone quarries — many of which were mined underground, leaving a network of tunnels and voids beneath parts of the city. Properties built directly above, or adjacent to, these voids can be at risk of ground movement as the tunnel structures deteriorate over time.

The Coal Authority and Bath and North East Somerset Council maintain records of known mine workings. Our surveyors are familiar with the affected areas and will always flag the risk if a property is in a potentially affected location, recommending a specialist mine workings search if appropriate.

What Happens If Our Survey Finds Structural Issues?

Finding structural issues in a survey doesn't automatically mean you should walk away. It means you need more information. In our report, we'll describe the defect, assess its likely cause and severity, advise whether further specialist investigation is needed (for example, from a structural engineer), and provide an estimate of likely repair costs where possible.

Armed with this information, you can:

• Negotiate a price reduction to reflect the cost of repairs
• Ask the vendor to carry out remedial works before exchange
• Commission a specialist structural engineer's report for more detailed advice
• Make an informed decision about whether to proceed or withdraw
